昨天我只是将数据库附加到SQL2012,然后各个数据库都做了收缩事务日志的操作

兼容级别这些都没有改

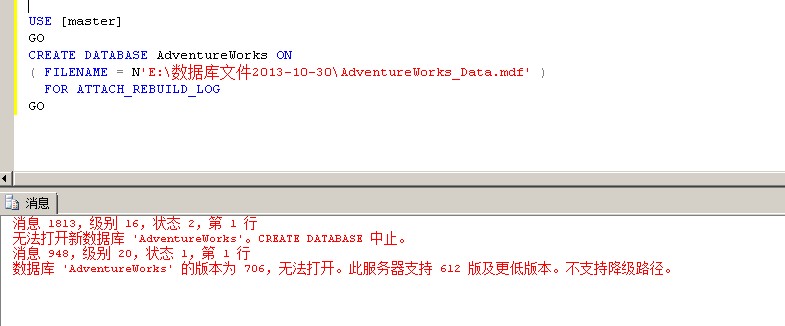

再附加回SQL2005的时候就报错

在SQL2012里附加,确实是90级别,但是在SQL2005死活附加不上

备份数据库再还原也是一样

重建事务日志也是一样


然后我做了一个实验,检查一下附加到SQL2012的数据库和附加到SQL2005的数据库,两个数据库的文件头有什么不同

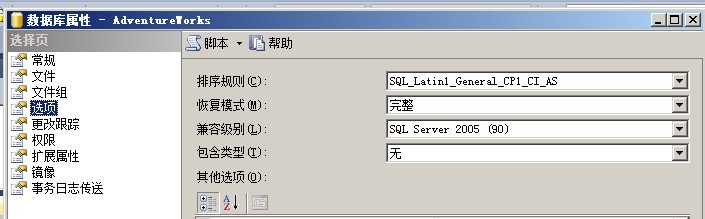

注意:两个数据库的兼容级别都是90,附加到SQL2012之后我也没有动过兼容级别!!

我们用同一个数据库,分别附加到SQL2005上和SQL2012上,看一下附加之后数据库的文件头有没有改变

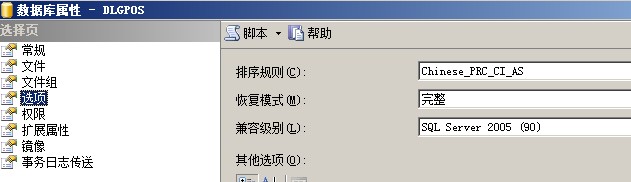

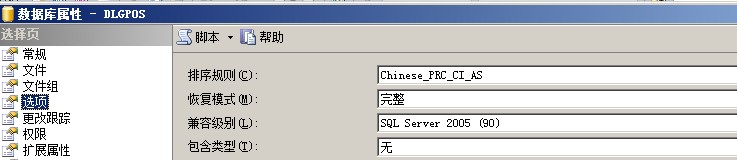

这个数据库的兼容级别是90的

附加到SQL2012之后,我也不改变他的兼容级别

查看文件头的SQL语句如下,实际上就是数据库的第0页:

1 DBCC TRACEON(3604,-1)
2 DBCC PAGE(dlgpos,1,0,3)

在SQL2012里和SQL2005里都执行一下

将结果复制粘贴到一个新建的记事本里,命名好

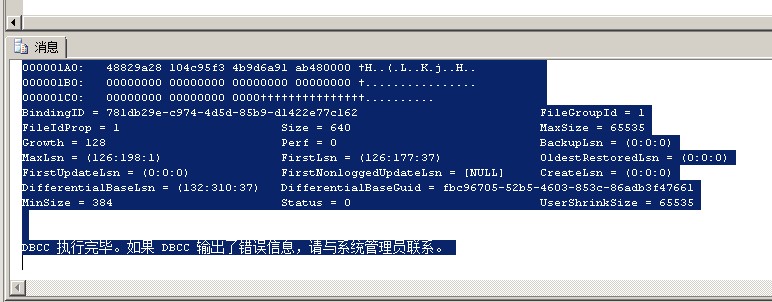

SQL2005文件头

复制代码
复制代码
 1 DBCC 执行完毕。如果 DBCC 输出了错误信息,请与系统管理员联系。
 2
 3 PAGE: (1:0)
 4
 5
 6 BUFFER:
 7
 8
 9 BUF @0x035D7380
10
11 bpage = 0x05BC0000                   bhash = 0x00000000                   bpageno = (1:0)
12 bdbid = 5                            breferences = 0                      bUse1 = 8142
13 bstat = 0xc00009                     blog = 0x59ca2159                    bnext = 0x00000000
14
15 PAGE HEADER:
16
17
18 Page @0x05BC0000
19
20 m_pageId = (1:0)                     m_headerVersion = 1                  m_type = 15
21 m_typeFlagBits = 0x0                 m_level = 0                          m_flagBits = 0x208
22 m_objId (AllocUnitId.idObj) = 99     m_indexId (AllocUnitId.idInd) = 0    Metadata: AllocUnitId = 6488064
23 Metadata: PartitionId = 0            Metadata: IndexId = 0                Metadata: ObjectId = 99
24 m_prevPage = (0:0)                   m_nextPage = (0:0)                   pminlen = 0
25 m_slotCnt = 1                        m_freeCnt = 7636                     m_freeData = 2844
26 m_reservedCnt = 0                    m_lsn = (132:328:1)                  m_xactReserved = 0
27 m_xdesId = (0:0)                     m_ghostRecCnt = 0                    m_tornBits = 1431739479
28
29 Allocation Status
30
31 GAM (1:2) = ALLOCATED                SGAM (1:3) = NOT ALLOCATED           PFS (1:1) = 0x44 ALLOCATED 100_PCT_FULL
32 DIFF (1:6) = CHANGED                 ML (1:7) = NOT MIN_LOGGED
33
34 File Header Data:
35
36 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP VARIABLE_COLUMNS
37
38 Memory Dump @0x5D95C952
39
40 00000000:   30000800 00000000 2d000000 00000000 ?0.......-.......
41 00000010:   2c007a00 7a007c00 7e008200 86008a00 ?,.z.z.|.~.......
42 00000020:   8e009800 a200ac00 ac00b000 b400b800 ?................
43 00000030:   bc00c600 e200ec00 f6000001 10011a01 ?................
44 00000040:   2a012e01 38013801 44015401 54015401 ?*...8.8.D.T.T.T.
45 00000050:   54015401 54015401 64016401 64016e01 ?T.T.T.T.d.d.d.n.
46 00000060:   78019401 9e01ae01 ca019eb2 1d7874c9 ?x............xt.
47 00000070:   5d4d85b9 d1422e77 c1620100 01008002 ?]M...B.w.b......
48 00000080:   0000ffff ffff8000 00000000 00000000 ?................
49 00000090:   00000000 00000000 00000000 00000000 ?................
50 000000A0:   00000000 00000000 00000000 80010000 ?................
51 000000B0:   00000000 ffffffff 00020000 7e000000 ?............~...
52 000000C0:   c6000000 01007e00 0000c600 00000100 ?......~.........
53 000000D0:   0000355a f94bc493 9149ac29 044140d0 ?..5Z.K...I.)[email protected]
54 000000E0:   3b1f7e00 0000b100 00002500 00000000 ?;.~.......%.....
55 000000F0:   00000000 00008400 00003601 00002500 ?..........6...%.
56 00000100:   0567c9fb b5520346 853c86ad b3f47661 ?.g...R.F.<....va
57 00000110:   00000000 00000000 0000018e a4cb618f ?..............a.
58 00000120:   414c90c3 68f1a4fd 0d810800 00007e00 ?AL..h.........~.
59 00000130:   0000c600 00000100 44004c00 47005000 ?........D.L.G.P.
60 00000140:   4f005300 cf6c06e9 4b9b3649 a11c2b70 ?O.S..l..K.6I..+p
61 00000150:   dbebb977 355af94b c4939149 ac290441 ?...w5Z.K...I.).A
62 00000160:   40d03b1f 00000000 00000000 00000000 [email protected];.............
63 00000170:   00000000 00000000 00000000 00000000 ?................
64 00000180:   00000000 00000000 00000000 00000000 ?................
65 00000190:   00000000 7e000000 b1000000 25003804 ?....~.......%.8.
66 000001A0:   48829a28 104c95f3 4b9d6a91 ab480000 ?H..(.L..K.j..H..
67 000001B0:   00000000 00000000 00000000 00000000 ?................
68 000001C0:   00000000 00000000 0000???????????????..........
69 BindingID = 781db29e-c974-4d5d-85b9-d1422e77c162                          FileGroupId = 1
70 FileIdProp = 1                       Size = 640                           MaxSize = 65535
71 Growth = 128                         Perf = 0                             BackupLsn = (0:0:0)
72 MaxLsn = (126:198:1)                 FirstLsn = (126:177:37)              OldestRestoredLsn = (0:0:0)
73 FirstUpdateLsn = (0:0:0)             FirstNonloggedUpdateLsn = [NULL]     CreateLsn = (0:0:0)
74 DifferentialBaseLsn = (132:310:37)   DifferentialBaseGuid = fbc96705-52b5-4603-853c-86adb3f47661
75 MinSize = 384                        Status = 0                           UserShrinkSize = 65535
76
77
78 DBCC 执行完毕。如果 DBCC 输出了错误信息,请与系统管理员联系。
复制代码
复制代码

SQL2012文件头

复制代码
复制代码
 1 DBCC 执行完毕。如果 DBCC 输出了错误信息,请与系统管理员联系。
 2
 3 PAGE: (1:0)
 4
 5
 6 BUFFER:
 7
 8
 9 BUF @0x0456ACA8
10
11 bpage = 0x187CA000                  bhash = 0x00000000                  bpageno = (1:0)
12 bdbid = 9                           breferences = 0                     bcputicks = 0
13 bsampleCount = 0                    bUse1 = 8145                        bstat = 0x9
14 blog = 0x21215a7a                   bnext = 0x00000000
15
16 PAGE HEADER:
17
18
19 Page @0x187CA000
20
21 m_pageId = (1:0)                    m_headerVersion = 1                 m_type = 15
22 m_typeFlagBits = 0x0                m_level = 0                         m_flagBits = 0x208
23 m_objId (AllocUnitId.idObj) = 99    m_indexId (AllocUnitId.idInd) = 0   Metadata: AllocUnitId = 6488064
24 Metadata: PartitionId = 0           Metadata: IndexId = 0               Metadata: ObjectId = 99
25 m_prevPage = (0:0)                  m_nextPage = (0:0)                  pminlen = 0
26 m_slotCnt = 1                       m_freeCnt = 7636                    m_freeData = 3302
27 m_reservedCnt = 0                   m_lsn = (141:733:159)               m_xactReserved = 0
28 m_xdesId = (0:0)                    m_ghostRecCnt = 0                   m_tornBits = 426768658
29 DB Frag ID = 1
30
31 Allocation Status
32
33 GAM (1:2) = ALLOCATED               SGAM (1:3) = NOT ALLOCATED          PFS (1:1) = 0x44 ALLOCATED 100_PCT_FULL
34 DIFF (1:6) = CHANGED                ML (1:7) = NOT MIN_LOGGED
35
36 File Header Data:
37
38 Record Type = PRIMARY_RECORD        Record Attributes =  NULL_BITMAP VARIABLE_COLUMNS
39 Record Size = 458
40 Memory Dump @0x1019CB1C
41
42 00000000:   30000800 00000000 2d000000 00000000 2c007a00  0.......-.......,.z.
43 00000014:   7a007c00 7e008200 86008a00 8e009800 a200ac00  z.|.~...............
44 00000028:   ac00b000 b400b800 bc00c600 e200ec00 f6000001  ....................
45 0000003C:   10011a01 2a012e01 38013801 44015401 54015401  ....*...8.8.D.T.T.T.
46 00000050:   54015401 54015401 64016401 64016e01 78019401  T.T.T.T.d.d.d.n.x...
47 00000064:   9e01ae01 ca019eb2 1d7874c9 5d4d85b9 d1422e77  .........xt.]M...B.w
48 00000078:   c1620100 01000003 0000ffff ffff8000 00000000  .b..................
49 0000008C:   00000000 00000000 00000000 00000000 00000000  ....................
50 000000A0:   00000000 00000000 00000000 80010000 00000000  ....................
51 000000B4:   ffffffff 00020000 7e000000 c6000000 01007e00  ........~.........~.
52 000000C8:   0000c600 00000100 0000355a f94bc493 9149ac29  ..........5Z.K...I.)
53 000000DC:   044140d0 3b1f7e00 0000b100 00002500 00000000  [email protected];.~.......%.....
54 000000F0:   00000000 00008400 00003601 00002500 0567c9fb  ..........6...%..g..
55 00000104:   b5520346 853c86ad b3f47661 00000000 00000000  .R.F.<....va........
56 00000118:   0000018e a4cb618f 414c90c3 68f1a4fd 0d810800  ......a.AL..h.......
57 0000012C:   00007e00 0000c600 00000100 44004c00 47005000  ..~.........D.L.G.P.
58 00000140:   4f005300 cf6c06e9 4b9b3649 a11c2b70 dbebb977  O.S..l..K.6I..+p...w
59 00000154:   355af94b c4939149 ac290441 40d03b1f 00000000  5Z.K...I.)[email protected];.....
60 00000168:   00000000 00000000 00000000 00000000 00000000  ....................
61 0000017C:   00000000 00000000 00000000 00000000 00000000  ....................
62 00000190:   00000000 7e000000 b1000000 25003804 48829a28  ....~.......%.8.H..(
63 000001A4:   104c95f3 4b9d6a91 ab480000 00000000 00000000  .L..K.j..H..........
64 000001B8:   00000000 00000000 00000000 00000000 0000      ..................
65 BindingID = 781db29e-c974-4d5d-85b9-d1422e77c162                         FileIdProp = 1
66 FileGroupId = 1                     Size = 768                          MaxSize = 65535
67 Growth = 128                        Perf = 0                            BackupLsn = (0:0:0)
68 FirstUpdateLsn = (0:0:0)            OldestRestoredLsn = (0:0:0)         FirstNonloggedUpdateLsn = [NULL]
69 MinSize = 384                       Status = 0                          UserShrinkSize = 65535
70 SectorSize = 512                    MaxLsn = (126:198:1)                FirstLsn = (126:177:37)
71 CreateLsn = (0:0:0)                 DifferentialBaseLsn = (132:310:37)
72 DifferentialBaseGuid = fbc96705-52b5-4603-853c-86adb3f47661              FileOfflineLsn = (0:0:0)
73 FileIdGuid = cba48e01-8f61-4c41-90c3-68f1a4fd0d81                        RestoreStatus = 8
74 RestoreRedoStartLsn = (126:198:1)   RestoreSourceGuid = e9066ccf-9b4b-4936-a11c-2b70dbebb977
75 HardenedSkipLsn = [NULL]            ReplTxfTruncationLsn = [NULL]       TxfBackupLsn = [NULL]
76 FstrContainerSize = [NULL]          MaxLsnBranchId = 4bf95a35-93c4-4991-ac29-044140d03b1f
77 SecondaryRedoStartLsn = [NULL]      SecondaryDifferentialBaseLsn = [NULL]
78 ReadOnlyLsn = (0:0:0)               ReadWriteLsn = (0:0:0)
79 RestoreDifferentialBaseLsn = (126:177:37)
80 RestoreDifferentialBaseGuid = 82480438-289a-4c10-95f3-4b9d6a91ab48
81 RestorePathOrigin
82
83 hex (dec) = 0x00000000:00000000:0000 (0:0:0)
84 m_guid = 00000000-0000-0000-0000-000000000000
85 DatabaseEncryptionFileState = [NULL]FCBFileDEK = [NULL]
86
87
88 DBCC 执行完毕。如果 DBCC 输出了错误信息,请与系统管理员联系。
复制代码
复制代码

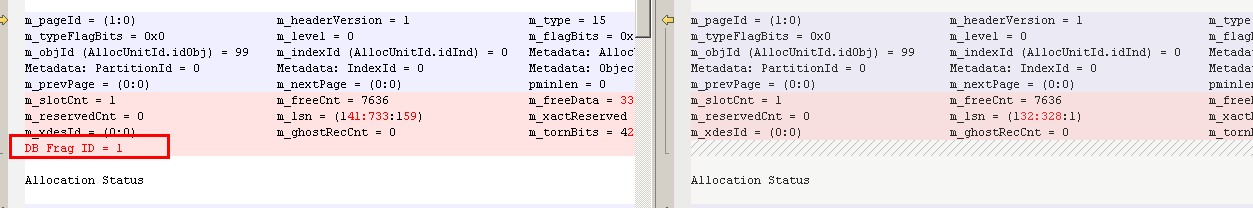

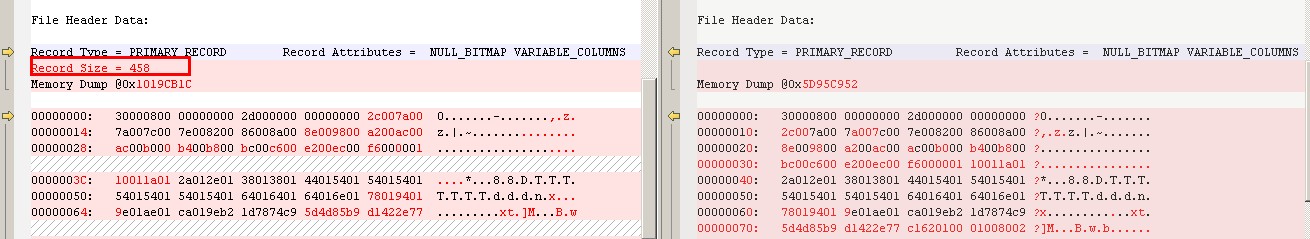

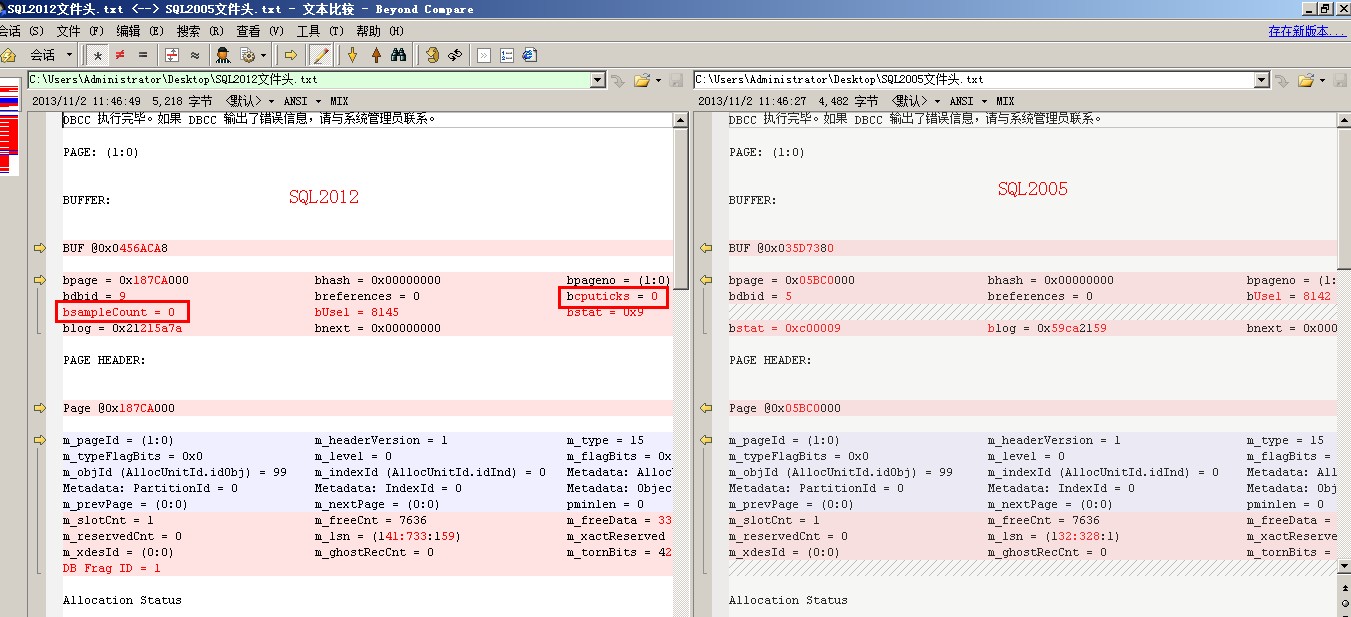

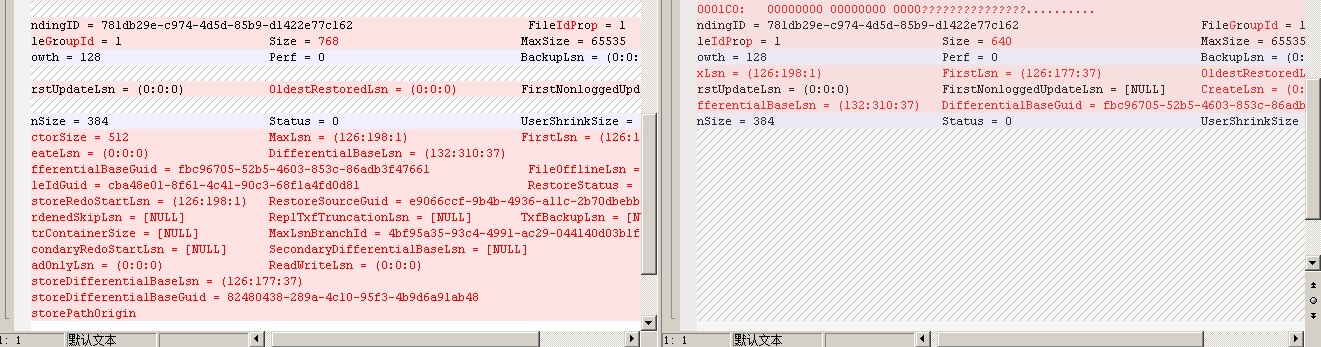

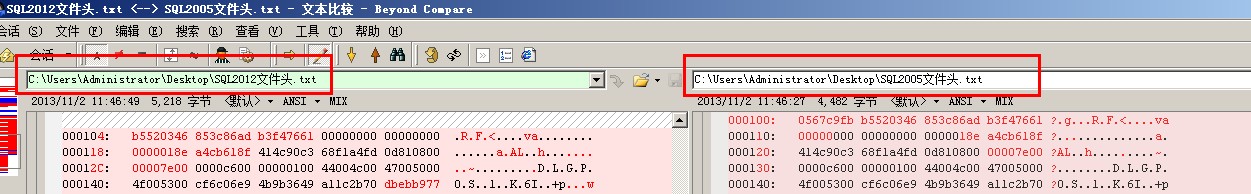

可以用Beyond Compare这个软件比较一下两者的文件头的差异

Beyond Compare这个软件会把两个txt文件中的相同点用蓝色标记出来,不同点用红色标记出来

当附加到SQL2012之后,数据库的文件头已经走样了,就算你没有动过兼容级别,这也是造成曾经附加到SQL2012的数据库

再也附加不上SQL2005上的原因

可以看到SQL2012的数据库记录的信息比SQL2005详细多了,多了很多内容

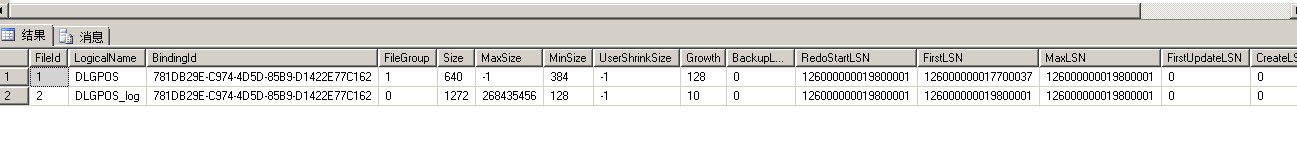

也可以用下面的SQL语句看文件头的内容,不过信息比较少

1 DBCC fileheader('DLGPOS')


总结

上面的实验证明了,当你将一个SQL2005的数据库附加到SQL2012上的时候,SQL2012马上改变数据库的文件头

就算你不动数据库兼容级别,实际上数据库的信息已经改变了(这里指文件头信息)

所以你死活附加不回去SQL2005了

以后不要轻易附加数据库到SQL2012上,不然的话。。。。。。
